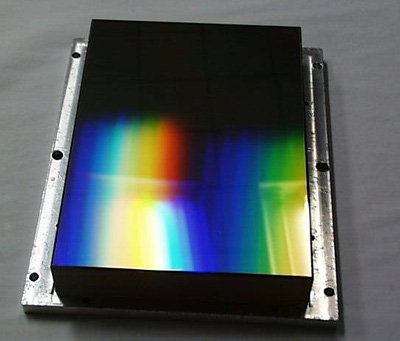

Cross Disperser Unit

For Blue to Infrared

Ruling frequency
250 grooves/mm
Blaze angle
5.0 degree
Blaze Wavelength
700nm
Resolution
100% of theoretical
Intensity of maximum ghost
<0.01% of parent in the 14th order of 5461A
Catalog No.
35-73-X-271
Serial No.
MR122-5-3-1-2
Ruled area
210mm x 150mm (long line)
Base size
220mm x 160mm x 35mm
Base Material
Zerodur

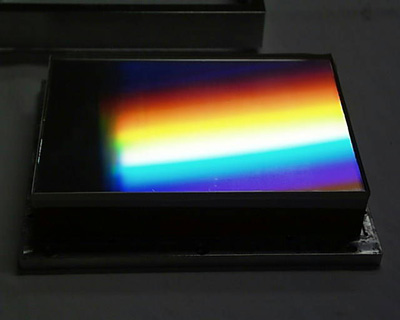

For Ultraviolet to Blue

Ruling frequency
400 grooves/mm
Blaze angle
4.76 degree
Blaze Wavelength
4150 A
Resolution
>80% of theoretical
Intensity of maximum ghost
<0.002% of parent in the 3rd order of 5461A
Catalog No.
35-73-X-271
Serial No.
MR162-4-2
Ruled area
210mm x 150mm (long line)
Base size
220mm x 160mm x 35mm
Base Material
Zerodur
